Tesla's Engineering Blueprint: Product Deep Dive

1. Overall Vehicle Architecture:

• Design Philosophy & Core Principles: Tesla's engineering emphasizes first-principles design for high performance, efficiency, and safety. Vehicles feature a skateboard chassis (low-slung battery pack) for optimal center of gravity and structural rigidity. A minimalist design reduces complexity and weight, exemplified by large single-piece castings (Gigacasting) and integrated components. In-house development of critical technologies (battery, software, AI chips) enables tight integration and continuous improvement via over-the-air (OTA) updates. Safety is paramount, with designs engineered to exceed crash regulations.
• Platform Strategy: Tesla utilizes common platforms to streamline development and manufacturing. The Model S/X introduced their premium EV platform. The Model 3/Y platform targets mass-market adoption, sharing a significant percentage of components and pioneering innovations like structural battery packs and megacastings. A next-generation platform is anticipated to further reduce production costs. Core technologies like battery modules, drive units (typically 350-400V architecture), and Autopilot hardware/software are evolved and shared across platforms.
• Key Performance Indicators (KPIs): Key metrics include: Range (aiming for 300-400+ miles, with high energy efficiency like ~4.0+ miles/kWh for Model 3 RWD); Acceleration (e.g., Model S Plaid 0-60 mph ~1.99s); Efficiency (Wh/mile, continuously improved via drivetrain and aerodynamics); Charging Speed (up to 250 kW on V3 Superchargers for the 400V architecture); Cost per Vehicle (ongoing efforts to reduce manufacturing costs); Safety Ratings (targeting 5-Star NHTSA/Euro NCAP); Reliability (million-mile drive units, 1500+ cycle batteries); and User Experience (fast charging, responsive software).
• Vehicle Revisions: Tesla implements continuous hardware and software improvements rather than traditional model years. Major platform generations are distinct (e.g., original Model S vs. 2021+ refresh), but component-level updates (motors, battery cells like 18650, 2170, and the upcoming 4680, Autopilot hardware from HW1 to HW4) are frequent. Firmware and OTA updates ensure vehicles adapt to new hardware and receive new features.
• Regulatory Compliance & Homologation: Tesla EVs meet global standards (FMVSS in US, UN/ECE in Europe). This includes EV-specific rules like battery safety (FMVSS 305, ECE R100), pedestrian warning sounds (AVAS), and charging standards (NACS in North America, CCS2 in Europe). Autopilot and other systems undergo safety assessments. OTA updates can address compliance changes.

2. Powertrain System:

• Battery Pack System:
  • Cell Technology: Cylindrical Li-ion cells are standard. Chemistries include Nickel Cobalt Aluminum Oxide (NCA) and Nickel Manganese Cobalt (NMC) for energy density in Long Range/Performance models, and Lithium Iron Phosphate (LFP) in Standard Range models for longevity and cost-effectiveness. The 4680-size cell is a newer format enabling structural battery packs and aims for improved energy density and manufacturing efficiency.
  • Module & Pack Design: Traditionally, cells are grouped into modules within a pack. The 4680 structural pack integrates cells directly into the vehicle's chassis, enhancing rigidity and reducing weight by making the pack a load-bearing component. This "cell-to-pack" or "cell-to-chassis" approach is a key innovation. Packs operate around a nominal ~350-400V.
  • HV Interconnects: High-voltage contactors and pyrofuses ensure battery isolation in emergencies.
  • Enclosure: Robust, sealed enclosures, often aluminum, protect the battery and contribute to vehicle structure. Some models feature underbody shielding.
  • Battery Management System (BMS): Sophisticated BMS for charge control, cell balancing, thermal management, SoC/SoH estimation, and safety. It enables fast charging by optimizing battery temperature and protects against over/under voltage, current, and temperature.
  • Thermal Management System (Battery): Liquid cooling/heating maintains optimal battery temperature (typically 30-50°C for operation and fast charging) using coolant circulated through channels or cold plates within the pack. Systems like the Octovalve and heat pumps in newer models enhance thermal efficiency.
• Drive Unit(s): Integrated modules containing motor, inverter, gearbox, and differential.
  • Motor Type: Predominantly Permanent Magnet Synchronous Reluctance Motors (IPM-SynRM) for high efficiency (e.g., Model 3/Y). Performance models like Plaid use multiple high-performance PM motors, some with carbon-sleeved rotors for very high RPMs (~20,000 rpm) and power. AC induction motors were used in earlier models and some dual-motor configurations.
  • Power and Torque: Varies by model, with Plaid versions exceeding 1000 hp. Torque vectoring is achieved in multi-motor setups.
  • Gearbox/Transmission: Single-speed fixed reduction gear.
  • Cooling: Liquid-cooled motors and inverters.
  • Inverters: Silicon Carbide (SiC) MOSFETs are used in current models for high efficiency and power handling.
  • Control Logic: Advanced Field-Oriented Control (FOC), rapid traction/stability control via motor torque modulation.
• On-Board Charger (OBC): Converts AC to DC for battery charging. Current models typically feature ~11.5 kW (48A @ 240V) capability in North America, with regional variations for 3-phase power. Bidirectional charging (V2G/V2H) is an anticipated future capability.
• DC-DC Converter (HV to LV): Steps down main battery voltage (~400V) to power auxiliary systems (12V or, increasingly, 48V). Cybertruck pioneers the 48V low-voltage architecture for reduced wiring size and weight.

3. Chassis and Body:

• Body Structure:
  • Materials: Mix of high-strength steel and aluminum. Model S/X traditionally more aluminum-intensive; Model 3/Y use more steel with aluminum panels. Ultra-high-strength steel for safety cage.
  • Gigacasting: Use of very large single-piece aluminum castings (e.g., front/rear underbodies in Model Y and Cybertruck) to replace dozens of smaller parts, simplifying assembly, reducing weight, and improving structural performance.
  • Aerodynamics: Low drag coefficients achieved through smooth underbodies, flush handles, and optimized shapes. Active aero elements on some models.
• Suspension System: Four-wheel independent. Model S/X feature adaptive air suspension. Model 3/Y use coil spring suspension (MacPherson strut front, multi-link rear). Cybertruck has adaptive air suspension with long travel.
• Steering System: Electric Power Steering (EPS). Cybertruck introduces steer-by-wire for its rear-wheel steering and potentially front, enabling features like variable steering ratios with its yoke.
• Braking System: Blended regenerative and friction braking. Brake-by-wire (e.g., Bosch iBooster) for seamless coordination. High-performance brake options for Plaid models.
• Wheels and Tires: Aluminum alloy wheels, often with aerodynamic designs. EV-specific tires with low rolling resistance and noise-dampening foam.

4. Low-Voltage (LV) Electrical System

• LV Battery: Transition from 12V lead-acid to 12V Lithium-ion in newer models (e.g., refreshed S/X, some Y). Cybertruck spearheads a 48V Li-ion LV system, reducing current, wire thickness, and weight.
• Power Distribution Architecture: Moving towards smart power distribution with Body Control Modules (BCMs) and solid-state fuses, reducing reliance on traditional fuse boxes.
• Body Control Module (BCM) / Vehicle Control Unit (VCU): Centralized controllers managing body functions, powertrain coordination, thermal management, and high-voltage systems. Facilitates OTA updates for various vehicle functions.

5. Software, Electronics, and Autonomy

• Central Compute Architecture:
  • MCU (Media Control Unit): Latest vehicles use powerful AMD Ryzen APUs for infotainment, navigation, and in-car gaming.
  • Autopilot Computer (FSD Computer): Tesla's custom AI hardware (currently HW3, with HW4 rolling out) processes data from sensors for Autopilot and Full Self-Driving features. HW4 features upgraded cameras and potentially a new radar.
• Operating System(s) & Software Stack: Custom Linux-based OS for MCU. Specialized real-time OS and software for FSD computer. In-house development allows deep integration and rapid iteration.

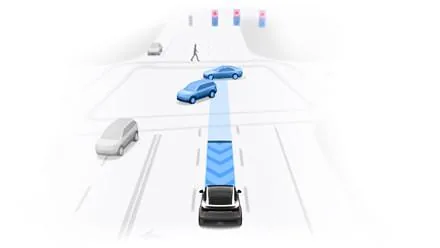

• Autopilot / Full Self-Driving (FSD) System: ADAS leveraging a camera-based "Tesla Vision" system (typically 8 external cameras). HW4 may reintroduce high-resolution radar. Neural networks for perception, planning, and control. FSD Beta offers advanced capabilities like city street navigation (requires driver supervision).
• Infotainment System (IVI): Large high-resolution touchscreens (e.g., 17" in S/X, 15" in 3/Y). Controls most vehicle functions. Premium audio systems, often with active noise cancellation.
• Telematics Control Unit (TCU): Provides cellular (LTE/5G) and Wi-Fi connectivity for OTA updates, remote diagnostics, mobile app access, and in-car data services.
• Firmware Over-The-Air (FOTA) & Software Over-The-Air (SOTA) Updates: A key Tesla differentiator, allowing updates to nearly all vehicle systems, adding features and improving performance post-purchase.
• Vehicle Network Architecture: Utilizes CAN buses for real-time control, LIN buses for simpler components, and an Ethernet backbone for high-bandwidth data (e.g., camera feeds to FSD computer, MCU communications).

6. Interior Systems

• Seats: In-house designed, often using "vegan leather" (polyurethane). Power-adjustable, heated, and in some models, ventilated.
• HVAC System: Highly integrated. Newer models (Model 3/Y, refreshed S/X) feature a heat pump and the "Octovalve" thermal management system for significantly improved efficiency in heating and cooling. HEPA air filtration with "Bioweapon Defense Mode" available. Model 3/Y feature a minimalist dash vent with screen-controlled airflow.
• Dashboard & Controls: Minimalist design dominated by the central touchscreen. Stalkless steering (yoke or wheel with touch buttons for signals/wipers) in newer Model S/X.
• Airbags & Restraint Systems: Comprehensive airbag systems, seatbelt pretensioners, and load limiters contribute to high safety ratings.

7. Exterior Systems

• Exterior Lighting: Full LED lighting. Adaptive/Matrix LED headlights on higher-end models. Automatic high beams.
• Wipers & Washers: Camera-based rain sensing ("Deep Rain" neural network).
• Door Systems: Flush handles (self-presenting on Model S). Model X features automatic front doors and iconic Falcon Wing rear doors. Model 3/Y use electronic door latches with manual backup.
• Glass (Windshield, Roof, Windows, Armor): Large glass roofs are common. Acoustic glass for noise reduction. Cybertruck features "Armor Glass" designed for increased durability.

8. Safety & Security

• Active Safety Systems: Standard ESC, traction control, ABS. Autopilot provides Forward Collision Warning (FCW), Automatic Emergency Braking (AEB), side collision avoidance, and blind-spot monitoring. Driver monitoring via cabin camera for Autopilot use.
• Passive Safety Systems & Post-Crash Measures: Strong body structures, crumple zones, and battery pack integration contribute to excellent crash test performance. HV system disconnects post-crash.
• High-Voltage Safety: Isolated and protected HV components, BMS monitoring for faults.
• Cybersecurity & Software Security: Secure boot, encrypted communications, OTA patching, bug bounty programs. Sentry Mode and PIN-to-Drive for anti-theft.

9. Manufacturing & Assembly Highlights (Impact on Product)

• Gigacasting: Large single-piece castings for front/rear underbodies reduce part count, welds, and weight, while increasing structural rigidity and simplifying assembly. Primarily impacts Model Y and Cybertruck.
• Structural Battery Pack: Integrating 4680 cells directly into the vehicle's structure serves as both energy storage and a chassis component, improving torsional rigidity, reducing mass, and simplifying manufacturing. Key for newer Model Y versions and planned for other future vehicles.
• Vertical Integration: In-house design and manufacturing of key components like motors, batteries, seats, and software allows for tighter integration, faster innovation, and potentially cost control.

10. Serviceability & Diagnostics

• Remote Diagnostics & Software Support: Extensive remote diagnostic capabilities via vehicle connectivity. Many issues can be identified or even resolved via OTA updates.
• Mobile Service & Service Centers: A combination of mobile technicians for common repairs and physical service centers for more complex work.
• Modularity & Repairability: Major components like drive units and battery packs are designed to be relatively modular for replacement. However, highly integrated structures like Gigacastings and structural packs can pose repair challenges, sometimes necessitating larger section replacements.

11. Key Differentiating Technologies

• Vertically integrated design and manufacturing.
• Over-the-Air (OTA) software updates for continuous improvement.
• Proprietary Supercharger network (though opening up NACS).
• Advanced Autopilot/FSD capabilities with custom AI hardware (HW3/HW4) and software.
• Minimalist design and user experience via large touchscreens powered by capable MCUs (e.g., AMD Ryzen).
• Manufacturing innovations like Gigacasting and structural battery packs.
• Advanced thermal management (e.g., Octovalve, heat pump).
• 48V low-voltage architecture (starting with Cybertruck).

12. Integration with other Tesla Products/Services

• Seamless integration with Tesla Mobile App for remote control and monitoring.
• Vehicle-to-Grid (V2G) or Vehicle-to-Home (V2H) capabilities are an increasing focus, particularly with Powerwall.
• Navigation system integration with Supercharger network availability and automated battery preconditioning.

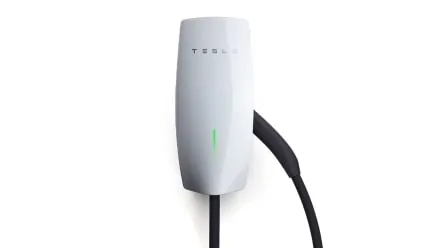

• Charging at home with Tesla Wall Connector, often paired with Tesla Solar products (Solar Roof, Solar Panels).

13. Known Limitations & Design Trade-offs (Current Perspective)

• Reliance on camera-only "Tesla Vision" for Autopilot/FSD has faced scrutiny, though HW4 may see wider (re)introduction of radar.
• Minimalist interior and single-screen controls can be a learning curve and less ergonomic for some functions.
• Repairability of highly integrated components (structural packs, Gigacastings) can be more complex or costly.
• Service center capacity and wait times can be a concern in some areas, despite network expansion.

14. Major Revisions Summary

• Autopilot Hardware: Evolution from HW1 (Mobileye) to HW2/2.5 (NVIDIA) to HW3 (Tesla FSD Computer 1) and current HW4 (Tesla FSD Computer 2 with upgraded sensors).
• Battery Technology: Progression from 18650 cells to 2170 cells, and now the introduction and ramp-up of 4680 cells. Shift towards LFP chemistry for standard range models. Development of structural battery packs.
• Infotainment MCU: Transition from NVIDIA Tegra to Intel Atom, and currently AMD Ryzen processors for significantly improved performance.
• Manufacturing: Introduction of Gigacasting and structural battery pack assembly.

1. Structural Battery Pack (newer Model Y, expanding):

• Cell-to-Pack/Chassis Technology: Utilizes 4680 cells (in some versions) bonded directly into the pack, which forms part of the vehicle chassis.
• Benefits: Increased torsional rigidity, reduced vehicle weight, simplified manufacturing, potential for improved interior space.
• Manufacturing: Enabled by Gigacasting for front/rear underbody sections that integrate with the structural pack.

2. Octovalve / Integrated Thermal Management System:

• Components: An 8-port valve centralizing coolant flow control, heat pump, chiller, radiator.
• Functionality: Efficiently manages heating and cooling for battery, cabin, and powertrain by scavenging and redirecting waste heat, significantly improving cold-weather range and overall efficiency compared to purely resistive heating.

3. Minimalist Interior Design & Single Central Screen:

• User Interface: A single 15-inch landscape touchscreen controls nearly all vehicle functions, including speedometer, climate, media, and Autopilot display.
• Design Ethos: Reduces physical buttons and complexity, contributing to a clean aesthetic and streamlined manufacturing. Features like the single dash air vent with screen-based directional control.

4. Gigacasting (Rear and Front Underbody for Model Y):

• Impact: Replaces dozens of stamped and welded parts with single, large cast aluminum pieces for the front and rear underbody structures.
• Advantages: Reduces manufacturing complexity, cost, and vehicle weight; improves structural integrity and consistency.

5. Heat Pump HVAC System (Standard):

• Efficiency: Significantly more efficient than resistive heating, especially in cold climates, by drawing heat from ambient air or waste heat from drivetrain components. Works in conjunction with the Octovalve.

6. Camera-Only Vision System for Autopilot (Tesla Vision):

• Sensors: Relies primarily on an 8-camera suite for Autopilot and FSD functionalities. Newer models with HW4 may incorporate higher-resolution cameras and potentially radar.
• Processing: Processed by Tesla's FSD computer (HW3 or HW4).

7. Cell Chemistries:

• Standard Range: Typically LFP (Lithium Iron Phosphate) cells for durability, cost-effectiveness, and ability to be regularly charged to 100%.
• Long Range/Performance: Typically NCA (Nickel Cobalt Aluminum Oxide) or NMC (Nickel Manganese Cobalt) cells for higher energy density.

1. Smart Air Suspension System:

• Adaptive Damping: Continuously adjusts to road conditions and driving style. GPS-memory for automatic height adjustment (e.g., high for speed bumps, low for highway).
• Components: Air springs, adaptive dampers, height sensors, dedicated control unit.

2. Falcon Wing Doors (Model X):

• Mechanism: Double-hinged, articulating powered doors that open upwards.
• Sensors: Equipped with multiple ultrasonic and capacitive sensors to avoid obstacles during operation.
• Access: Allows for easier access to second and third rows, especially in tight parking spaces.

3. Automatic Front Doors (Model X):

• Doors can automatically open upon approach (driver's side) and close via brake pedal press or screen command.

4. Adaptive Front Lighting System:

• Matrix LED headlights (newer models): Allows for dynamic shaping of the light beam, potentially enabling features like glare-free high beams (subject to regional regulations).

5. Three-Display Layout (Newer Models):

• Driver Display: 12.3-inch instrument cluster.
• Center Display: 17-inch tilting touchscreen (2200x1300 resolution) for infotainment and controls.
• Rear Display: 8-inch screen for rear passenger entertainment and climate control.

6. Yoke Steering Wheel (Optional/Standard on newer models):

• Design: Rectangular, stalkless steering control with integrated touch buttons for turn signals, horn, wipers, etc. A traditional round wheel is often available as an option or retrofit.
• Control: Works with standard steering ratios; steer-by-wire is not yet implemented with the yoke on S/X.

7. Powertrain Options (Plaid):

• Tri-Motor Configuration: One front motor, two rear motors for all-wheel drive and extreme performance.
• Carbon-Sleeved Rotors: Allows motors to spin at very high RPMs, contributing to over 1,000 horsepower.
• Torque Vectoring: Independent control of rear motors enables precise torque distribution for enhanced traction and handling.
• Enhanced Thermal Management: Improved cooling systems to handle sustained high-power output.

8. Active Noise Cancellation / Road Noise Reduction:

• Utilizes microphones and the audio system to reduce cabin noise.

9. Infotainment Computer:

• Powered by AMD Ryzen APU, offering high performance for gaming, media, and UI responsiveness.

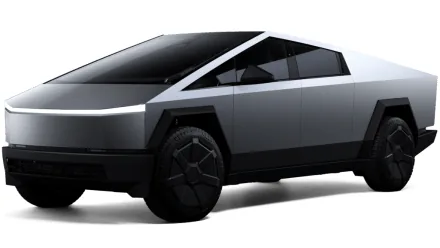

1. Stainless Steel Exoskeleton (Ultra-Hard 30X Cold-Rolled):

• Material: Proprietary stainless steel alloy, providing extreme durability and corrosion resistance. Unpainted exterior.
• Structure: The body itself is structural, contributing to vehicle rigidity and safety.
• Forming: Requires specialized manufacturing processes due to material hardness.

2. 48V Low-Voltage Architecture:

• Benefits: Reduces electrical current for the same power, allowing for thinner, lighter wiring harnesses, reduced I²R losses, and potentially faster actuator response.
• Key Components: 48V Li-ion auxiliary battery, specialized DC-DC converter from the high-voltage pack, 48V-compatible components (motors for seats/windows, pumps, steering actuators).

3. Steer-by-Wire System & Rear-Wheel Steering:

• Steer-by-Wire (Front & Potentially Rear): No mechanical linkage between the steering wheel (yoke) and the front wheels (potentially). Allows for variable steering ratios; crucial for maneuverability with the yoke. Rear wheels are also steered by wire.
• Rear-Wheel Steering: Rear wheels can turn opposite to the front at low speeds for a tighter turning radius, and in the same direction at high speeds for stability and lane changes.

4. Adaptive Air Suspension with Long Travel:

• Capability: Offers significant ground clearance (up to ~16-17 inches reported) and adjustable ride height for on-road comfort and off-road capability.
• Control: Actively managed damping and height adjustment.

5. Integrated 120V/240V Bed and Cabin Outlets (Pro Power Onboard equivalent):

• Functionality: Provides power for tools, appliances, or even home backup (Vehicle-to-Load/Home - V2L/V2H capability).
• Power Output: Specific kW output for 120V and 240V outlets in the bed and cabin.

6. Armor Glass:

• Composition: Laminated glass designed for increased impact resistance compared to standard automotive glass.
• Application: Used for windshield and side windows.

7. Integrated Bed Cover ("Vault"):

• Design: Powered, retractable, and lockable bed cover that is flush with the body.
• Security & Aerodynamics: Provides cargo security and improves aerodynamics when closed.

8. Powertrain Options:

• Available in configurations including Rear-Wheel Drive (single motor), All-Wheel Drive (dual motor), and Cyberbeast (tri-motor high-performance).

9. Towing and Payload:

• Designed for significant towing capacity and payload, competitive with traditional pickup trucks.

1. High-Capacity Battery Pack & Range Variants:

• Capacity: Large battery pack designed for long-haul trucking, details on kWh still somewhat guarded but enabling target ranges.
• Range Options: Expected to be offered in ~300-mile and ~500-mile range versions. An updated, lighter, domestically sourced high-performance (HP) battery maintains these ranges with improved efficiency.
• Battery Chemistry: Likely utilizing high-energy-density cells, potentially 4680-based in full-scale production.

2. Powertrain & Performance:

• Motor Configuration: Typically a multi-motor setup on rear axles (e.g., three motors, with one for efficiency and two for high power/torque).
• Efficiency: Designed for low energy consumption (e.g., under 2 kWh/mile).
• Acceleration: Significantly faster than diesel counterparts, even when fully loaded.

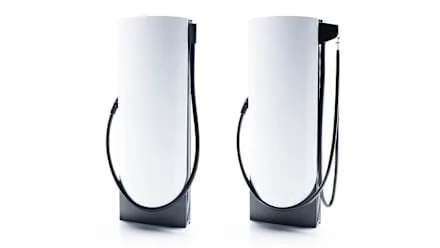

3. Megacharging System:

• Power Level: Designed for charging at over 1 MW (e.g., target of 1.2 MW) using the Megawatt Charging System (MCS) standard. This allows for adding significant range (e.g., ~400 miles) in approximately 30 minutes.
• Voltage: Operates on a higher voltage system (e.g., ~1000V).
• Connector: Uses the standardized MCS connector. V4 charging hardware is shared with Superchargers but adapted for Semi.
• Network: Tesla is building out a network of Megachargers along key freight routes, with 46 public sites planned by 2027.

4. Aerodynamic Design & Central Seating Position:

• Aerodynamics: Extremely low drag coefficient for a Class 8 truck (e.g., Cd ~0.36). Features include a smooth underbelly, optimized shaping, and active aerodynamic elements. Redesigned mirrors further improve aerodynamics.
• Central Seating: Driver is positioned in the center of the cab for optimal visibility, flanked by two large touchscreen displays.

5. Enhanced Autopilot/FSD for Highway Operations:

• Features: Expected to include advanced Autopilot features tailored for highway driving, potentially including platooning capabilities in the future. Autonomous driving is a key selling point.

6. Durability & Reliability for Commercial Use:

• Longevity: Designed for a million-mile operational life for drive units and robust battery performance.
• Reduced Maintenance: Fewer moving parts than diesel trucks, leading to lower maintenance costs.

7. Production & Availability:

• Factory: Dedicated factory in Nevada with a target annual capacity of 50,000 units.
• Timeline: Initial volume builds planned for late 2025, with ramp-up through 2026. First trucks for Tesla's own logistics, followed by customer deliveries.

8. Electric Power Take-Off (e-PTO):

• Allows the Semi's high-voltage battery to power auxiliary equipment, such as refrigeration units for trailers, using variable voltages.

9. Cabin Features:

• Drop-down glass section for improved visibility and interaction at gates/terminals.

1. Extreme Performance Targets (Announced):

• Acceleration: 0-60 mph in 1.9 seconds (base model, potentially faster with SpaceX package).
• Top Speed: Over 250 mph.
• Quarter Mile: As low as 8.8 seconds.
• Wheel Torque: 10,000 Nm (this figure includes gear multiplication).

2. Battery System & Range:

• Capacity: Expected large battery pack (e.g., ~200 kWh) for high energy density and power output.
• Range: Targeting up to 620 miles (1,000 km) on a single charge.
• Cell Technology: Will likely utilize Tesla's latest high-performance cell technology available at the time of production.

3. Powertrain:

• Motor Configuration: Tri-Motor All-Wheel Drive (one front, two rear) for optimal traction and torque vectoring.
• High C-Rates: Battery and powertrain designed to handle extremely high discharge and charge rates.

4. Aerodynamics & Design:

• Active Aerodynamics: Expected to feature active aerodynamic elements for high-speed stability and downforce.
• Removable Glass Roof: Designed as a 2+2 seater with a lightweight, removable glass roof that stores in the trunk.

5. SpaceX Package (Optional, Announced):

• Cold Gas Thrusters: Proposed option using high-pressure cold gas thrusters (composite overwrapped pressure vessels) to dramatically improve acceleration, braking, and cornering. System would be derived from SpaceX technology.
• Integration: Thrusters would be strategically placed around the vehicle. Details remain subject to final engineering and regulatory approval.

6. Production & Availability:

• Status: Development ongoing. Production timelines have been subject to change. As of early 2025, a production design is expected to be completed with volume production aimed for 2026, though this remains an ambitious target.
• Focus: Positioned as a halo car demonstrating the peak of EV performance.
